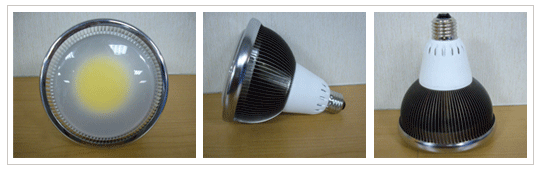

 P38






PAR38(196)-x



Part No. P519624-xW
Features :

. Product Size : Φ119mm (D) x 156mm (H)
. Weight : 300g
. Operating Voltage : 24V DC / AC
. 196 Chips on board LED
. Standard E27 base
. Aluminum Fin-Core TM housing
. No UV radiation
. Available Color: Amber, Blue, Green, Red, White
Application :
. Entertainment lighting
. Architectural lighting
. Landscape lighting
. and replace traditional halogen lamps…..

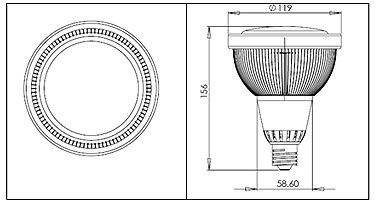

Dimension :                 (Unit : mm)
  Electrical / Optical Characteristic :

Part No.

Color

Beam Angle

Color Temperature

Lumen Flux
Lm (Typ.)

Input Voltage

Luminous efficacy (Lm/W) (Typ.)

Power
Max. W

P519624-NW

Nature White

140°

5000 ~ 5600k

1000

90 ~ 264V AC

70

15W

P519624-WW

Warm White

140°

3000 ~3600k

800

90 ~ 264V AC

55

15W

Operating Temperature

-20~50°C



Storage Temperature

-40~60°C




Ver.0.6/ 10.2009
