LED Linear Lighting
Part No. FL516824-RGB
Features :
. Product Size (LxWxH) : 4200mm x 13mm x 2.4mm (Reel)
. Flexible PC board with 3M tape at the back side
. High Brightness SMD LED (RGB 3in 1)
. Smallest unit (150mm) of 6 RGB LEDs can be cut at mark place
. Low Profile
. Easy Installation
. Pb Free / RoHS Compliant
Application :
. Amusement Park & Theater Mood Lighting
. Architectural decorative lighting
. Auditorium walkway lighting
. Backlighting for signage letters
. Tube Light Source
. Hallway lighting

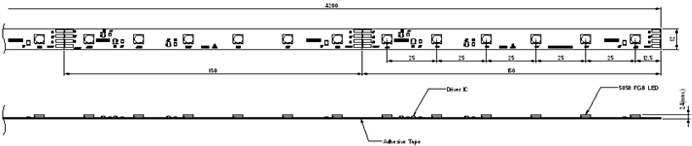

Dimension
    RGB Flexible Light Bar




  Electrical/Optical Characteristics :
Light Color
Red
Green
Blue
Dominant Wavelength
622~630nm
524~532nm
464~472nm
Luminous Intensity(Typ.)
430mcd
1000mcd
230mcd
Viewing Angle(Typ.)
120°
Operating Voltage
24V DC
Power Max./Unit
1.8 W
Power Max./Reel
55 W
Operating Temperature Range
-30°C to 45°C
Storage Temperature Range
-30°C to 80°C

Safety Warning
. Correct electrical polarity needs to be observed, inadequate polarity may be cause the destroy of the LED.
. Make sure that the power supply has enough power to operate the total load.
. When mounting on metallic, it requires the electrical isolation between module and mounting surface .


Ver.0.6/ 10.2009
